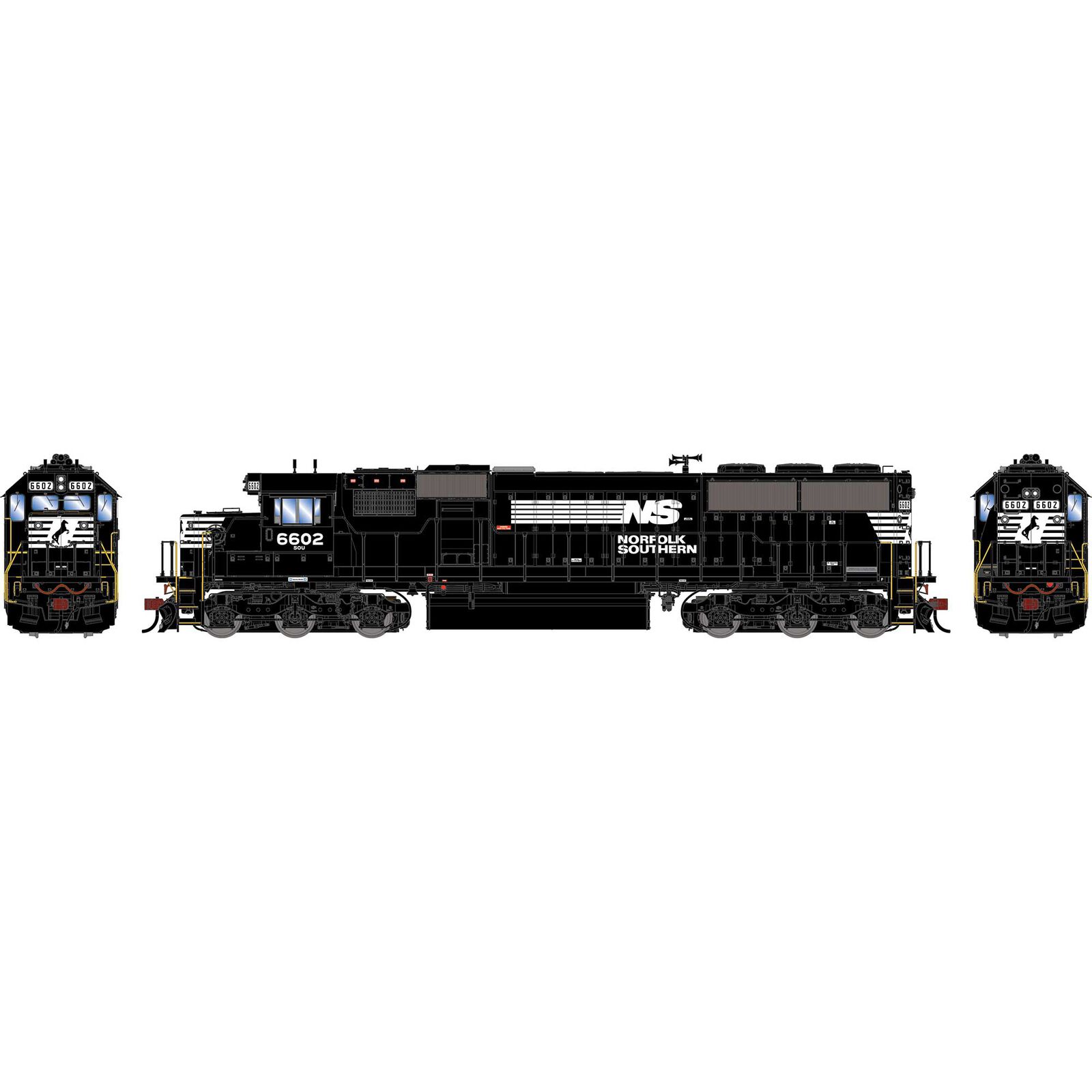

HO GEN SD60 Locomotive, NS #6602
ATHEARN GENESIS EMD SD60 DIESEL LOCOMOTIVE PROTOTYPE AND BACKGROUND INFO:
The SD60 is a microprocessor-controlled six axle locomotive utilizing a 16 Cylinder turbocharged EMD 710 engine to produce over 100,000 lbs of tractive effort at minimum continuous speed. This model is utilized primarily in over the road applications, but can also be used in large industrial loading/unloading facilities, namely where rail curvature is not an issue.
Riding on 40-inch diameter wheels, the SD60 measures 71 feet, 2 inches long- the same as its SD50 relative. The SD60 was ordered by numerous roads for heavy-haul service. Chicago and North Western, after having ordered 35 SD50s, returned to order 55 SD60s to bolster its coal service.
Conrail ordered 25 units with the standard cab before switching to the SD60I. Kansas City Southern was satisfied enough with its 10 SD50s that it came back to order 46 SD60 units. Norfolk Southern and Union Pacific were big buyers, taking 151 and 85 units respectively. The 100-unit lease fleet of Oakway SD60s was also a significant group. Overall, the SD60 model was a success for EMD, but it came too late in the game to unseat GE as the #1 locomotive builder in the US.
ATHEARN GENESIS EMD SD60 DIESEL LOCOMOTIVE FEATURES:
- New tooling from the rails up!
- New bodies with correct door placement and weld marks
- Early or late handrail placement
- HTC or Flexicoil trucks with Hyatt or animated Timken bearings
- Correct dymanic brake intake and exhaust grille placement
- Single or dual conduit fans
- Rounded or blunt anticlimbers with or without MU cutouts
- 4000 or 4500 gallon fuel tanks with fuel fillers, fuel gauges, & breather pipes; correct gauge and filler placement
- Operating Class Lights (Where equipped based on prototype)
- Operating Number boards
- Coupler cut levers
- Trainline hose
- Full cab interior
- Windshield wipers
- Wire grab irons
- MU hoses
- See-through cab windows
- Walkway tread
- Lift rings
- Sander lines
- DCC-ready features Quick Plug™ plug-and-play technology with 21-pin NEM connector
- Fine-scale Celcon handrails for scale appearance
- Body-mounted McHenry® operating scale knuckle couplers
- Genesis driveline with 5-pole skew wound motor, precision machined flywheels, and multi-link drivetrain for trouble free operation
- All-wheel drive with precision gears for smooth and quiet operation
- All-wheel electrical pickup provides reliable current flow
- Wheels with RP25 contours operate on all popular brands of track
- LED Lighting for trouble free operation
- Heavy die-cast frame for greater traction and more pulling power
- Scaled from prototype resources including drawings, field measurements, photographs, and more
- Accurately-painted and –printed paint schemes
- Packaging securely holds the model for safe storage
- Minimum radius: 22”
SOUND-EQUIPPED MODELS ALSO FEATURE:
- Onboard DCC decoder with SoundTraxx Tsunami2 sound
- Dual cube speakers for optimal sound quality
- Sound units operate in both DC and DCC
- Full DCC functions available when operated in DCC mode
- All functions NMRA compatible in DCC mode
- Precision slow speed control
- Program a multiple unit (MU) lashup with lead unit only horn, bell, and lights
- Many functions can be altered via Configuration Value (CV) changes
- CV chart included in the box
SOO FEATURES:
- 88” nose with clear class lights
- 4500-gallon fuel tank without seam
- Nose mounted brakewheel
- Xenon Beacon with bracket, right side mounted
- Spare knuckles on rear pilot, SOO specific
- HTC trucks with Timken bearings
- All-weather window on right side
- Rear class lights with clear lens
- Nathan M3 Horn
- Square-Type Jacking Pads
BN FEATURES:
- 88” nose with clear class lights
- Western Cullen Beacon
- HTC trucks with Hyatt bearings
- 4500-gallon fuel tank with seam and dual fillers
- Rear class lights with clear lens
- Nose mounted brake ratchet
- T-Type Jacking Pads
CR FEATURES:
- 88” nose with red marker lights
- Nathan K5LA Horn
- Square-Type Jacking Pads
- Bell with guard
- 4500-gallon fuel tank without seam
- Rear class lights with red lens
- Nose mounted brakewheel
- Spare knuckles on rear pilot
- Signal box
- HTC trucks with Timken bearings
UP FEATURES:
- 88” nose with clear class lights
- Leslie S3L Horn
- Square-Type Jacking Pads
- Spare knuckle bracket on each sideframe
- 4500-gallon fuel tank without seam
- HTC trucks with Timken bearings
- Rear class lights with clear lens
- Nose mounted brakewheel
CN FEATURES:
- 88” with blanked class lights
- Beacon bracket only
- Nose mounted brakewheel
- Waste retention tank
- Rectangular type toilet drain valve
- Front and rear pilot, CN specific
- 4500-gallon fuel tank without seam
- HTC trucks with Timken bearings
- Ditchlights mounted on anticlimber, front and rear
- Rear class lights blanked
- Nathan K3LA Horn
- Square-Type Jacking Pads
- Air dryer
- Spare knuckles on rear pilot
- Electronic fuel gauges
NS FEATURES:
- 88” nose with clear class lights
- Nathan P135-R24 Horn
- T-Type Jacking Pads
- Dual fuel gauges, NS specific
- Rear class lights with clear lens
- Nose mounted brakewheel
- Air dryer
- HTC trucks with Hyatt bearings
